Stator winding and insertion mc WIND-AGWI

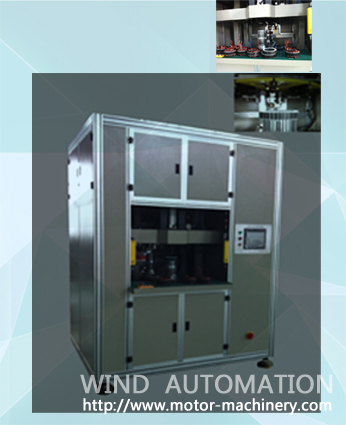

Two station wave Coil winding and insertion machine WIND-AGWI for producing alternator in one machine (VIDEO).

Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting into winding transfer former automatically.

View the working video on https://vimeo.com/123181585

Features:

Servo motor control wire arraying and winding, pneumatically formed to plum blossom shape coil,

double work stations automatic position changing, servo automatic wire embedding,

automatically put into slot cover, one work station for wave shape winding and push into wire embedding mould, another station for wire embedding and put into transfer form, put insulation paper inserted stator on the station manually, repeating operation, PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method, high automation and efficiency.

Power Supply Voltage: 3-380V/220V10%  50Hz

Wire Diameter: 0.8-1.6mm

Merging Winding Wire Number: 1-2

You may also interest in generator manual winding and insertion machine
