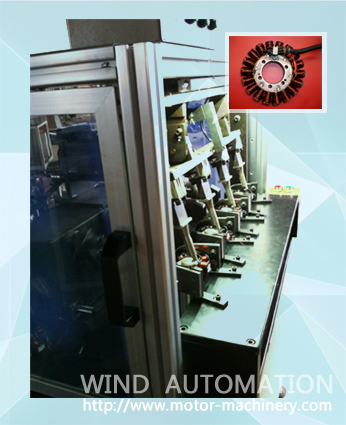

Motorcycle Stator winding mc WIND-MW-4

  • Magnetor stator winding
  • with Mitsubshi servo motor
  • 3 Axis
  • Product description: external winding Magneto winding machine is designed to produce motorcycle magneto, easy to change tooling, with PLC and touch screen panel, easy to operate,
  • Inquiry

PRODUCT INTRODUCTION

Magneto winding machine external winding machine  WIND-MW series is designed to produce external stator,motorcycle magneto stator and so on,

Easy to change tooling,

With PLC and touch screen panel, Easy to set parameter and operate,


Parameter:

Power supply: 220V, 50HZ

Motor: Winding Mitsubshi 1000W servo motor

Arraying Mitsubshi 400W servo motor

Indexing Mitsubshi 400W servo motor

Wire diameter:0.45mm~1.25mm

Unit OD:70~250mm

Spindle: 0~1500rpm

Turns No.0-999

Air pressure: 0.5-0.7Mpa

Pneumatic: Airtac

Capability:

For 18 poles stator

120pcs/shift(8hours Single station)

240pcs/shift (8 hours double station)

500pcs/shift (8 hours four stations)



Question and answer:

Question:

How many stators will this machine be capable of winding in an hour


Answer:

It take around 4 to 5 minutes to wind one stator by one winding head ,

So normally machine can wind around 12pcs to 15pcs stators in one hour,

It depends on the turns no. and the slots no.



Watch machine working video on Vimeo

WIND-WM-2 Two station winding machine with output 640pcs/ 8 hours for a 8 poles stators

https://vimeo.com/123586745


WIND-WM-4 Four station winding machine

https://vimeo.com/142343599



Photo:


Contact: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-17721374887

Website: http://www.motor-machinery.com; http://www.statorwindingmachine.com
