Armature commutator lathe machine surface turning WIND-CT-TH4

Armature commutator turning machine precise lathe grind commutator  withX,Z axis and servo system WIND-CT-TH4, face turning for wide range size of armature commutator surface lathing

Armature commutator lathing on armature automatic production line https://youtu.be/whFKJWcw0lg

Commutator turning machine Technical Data

1. Roundness < 0.003mm

2. Surface roughness

3. Armature OD 20~80mm

4. Shaft length:32~250mm (If longer need custom made)

5. Shaft Diameter: 2~18mm (can be custom made)

6. Commutator OD: 4.3~60mm

7. Stack OD: 20~110mm

8. Cutting amount:Rough cut Max0.20mm

9. RPM modulate: 0~60Hz

10. Cutter unit: 1um~0.5mm and speed adjustable

11. Cutting length:Max50mm

12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times

13. Air source: 5~7 MPa

14. Power source 220V 50/60Hz

15. Machine Power: 2.5kw

Question and Answer:

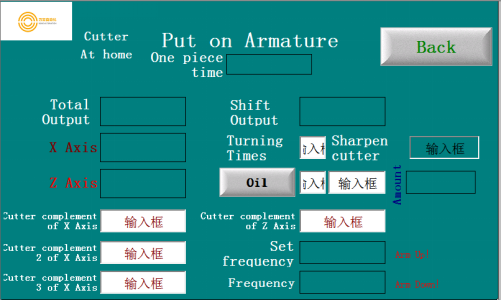

Configuration of the commutator turning machine

1.Mitsubishi PLC

2.Mitsubishi Servo system

3.Mitsubishi inverter

4. ABB 3Phase AC motor

5.Japan belt and coupling

6.Diamond V holder and Diamond cutter

HS Code:84581100

The lathe turning  machine is designed to finish turn the commutator brush track area of

relatively small fractional horsepower motor armatures, starter armatures commutator,

Turning of the commutator brush track area is accomplished through the use of a diamond-tipped tool

mounted onto a precision machine slide driven by a Japanese famous brand Mitsubishi servo motor ,

Turning and milling the surface of commutator to let it polish and shining,
