Double flyer armature winding for mixer armature WIND-STR

  • Automatic winding
  • Fast winding High efficiency
  • Hot and Popular Wonderful feedback
  • Product description: Wind the wire of hook type tang commutator armature for micro motor such as series motor, dc motor wiper, power tools,mixer,blender,car motor etc. With Japanese brand PLC control system and servo syst
  • Inquiry

PRODUCT INTRODUCTION

Two flyer armature winding machine for hook type tang commutator WIND-STR

Armature winder for field coil winding conductor winding of skew slot straight slot armatures


Main parameter:

Wire diameter range:  0.16~1.2 mm
Armature diameter:  20~85 mm
Stack length:      10~70 mm
Shaft diameter:    3~15 mm
Shaft length:       less than 250mm
Armature Slot:  even slot
Turn number:  0~9999
Commutator diameter:   8~40 mm
Winding speed:   0~2500 rpm
Winding motor power:  1.5KWX2
Angle detecting speed:   0~3000 rpm
Angle detecting motor power:  0.75KWX1

Air supply pressure:   4~6 Kg/cm2
The machine total power:  4.0 KW
Voltage:  three phase AC  380V   50/60 Hz
Weight:  1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000


Working video:

https://www.youtube.com/watch?v=kGEjSHjcPb0

https://vimeo.com/123410467


https://vimeo.com/123798436

https://www.youtube.com/watch?v=cjPmKfqBAVc



Winder Photos in plant:

Dural flyer armture winding

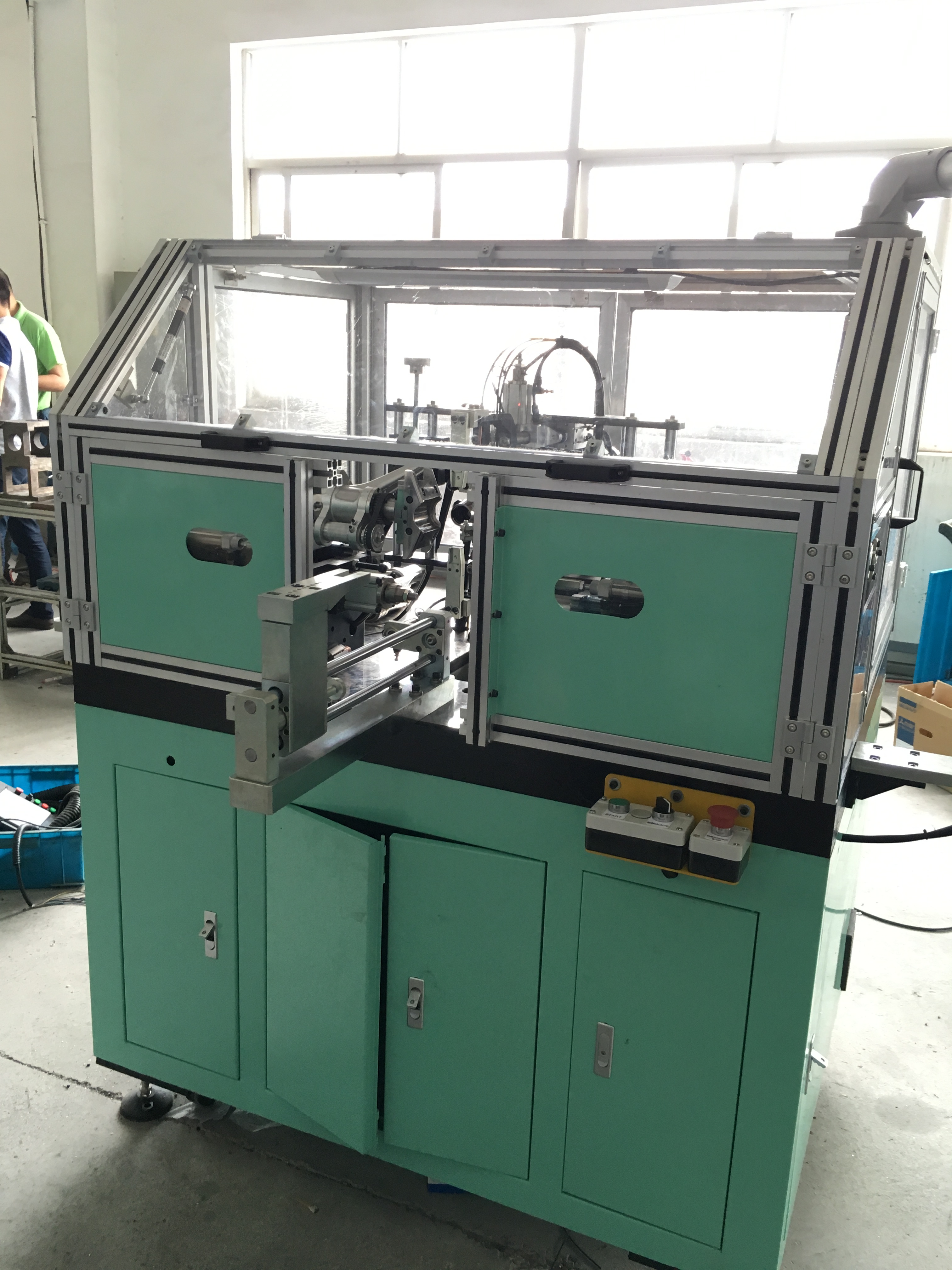

Fully automatic armture winding machine

Armature Winding machine package for delivery



You may also interest in

Slotted type armature winding machine WIND-ST-TD2B

Power tools with 12V battery case armature odd no. slot winding for 3 slots 5 slots WIND-ODD-4


paper inserting machine,

armature powder coating machine

wedge inserting machine

armature commutator fusing machine

armature commutator turning machine

armature balancing machine

armature testing machine

armature varnish trickling machine

semi-auto winding for reparing types of armature available
