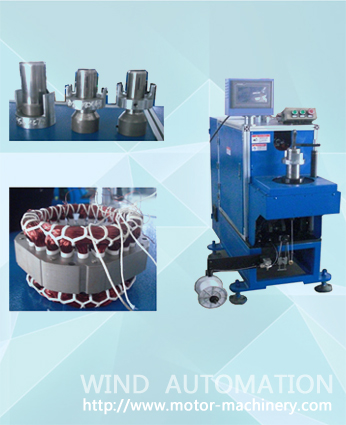

Stator windings compaction WIND-160-CLD

Product description: Lace and bind the stator coil end with insulation thread two side at same time
Inquiry

PRODUCT INTRODUCTION

Stator windings compaction Stator coil double side lacing machine WIND-160-CLD Parameter:

Thickness of stator lamination: 13mm-110mm
Min stator ID: Φ 30mm
Max outer diameter of stator: Φ 160mm
Tack time: 0.4-0.5s/ pin
Input: 380V/50Hz
Air pressure: 0.5-0.8MPa
Main motor power: 1.5KW
Indexing motor power: 0.4KW
Needle swing motor power: 0.4KW
Machine productivity: around 2000pcs/8 hours for 24 slots stator
Dimension: 1500mm × 650mm × 1700mm
Weight: ≈ 800kg

Stator coil compaction double side lacing machine WIND-160-CLD Video:

https://vimeo.com/127251294

A stator coil lacing machine apparatus and method which enables the end windings of a stator to be bound together by lacing cord and which automatically ties a knot in the cord at the completion of the cycle to firmly secure the lacing cord in position. This method and apparatus reduces the direct labor necessary to produce the end windings and provides them in an automated and efficient manner.
