Home  > Heat treatment varnish Oven
  • Coated stator armature curing oven WIND-CO-12

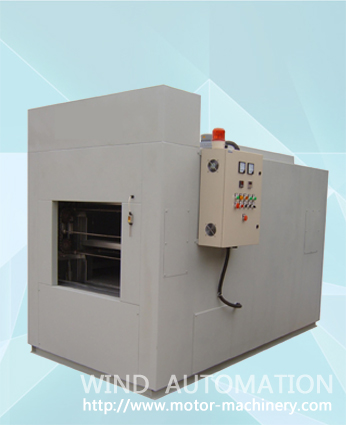

Coated stator armature curing oven WIND-CO-12

  • Product description: Coated stator armature curing oven,Powder coating curing oven, resin coating curing oven, varnish curing oven
  • Inquiry

PRODUCT INTRODUCTION

Powder coating curing oven, resin coating curing oven, varnish curing oven

Dimension L180*W1380*H1800   Power 380V,50Hz

Driven by chain and heating method is Stainless steel electric heating tube,

Heating power 7.2KW can heat up to 200℃~230℃

Inner wallboard use 150mm thick wool to keep the temperature , Inner side 1.5mm cold steel, outside 1.2mm cold steel

Electrical controlling device 1pc , with 12 working area, loading-unloading 5pcs , Curing area 7pcs, each working area can hang 3pcs armatures (per armature size)


Please check the working priciple of induction heating device to curing the armature,https://vimeo.com/168278107

From which you can see the armature was cured one by one, and with oven you can cured several armatures once.



Contact:Emily

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
