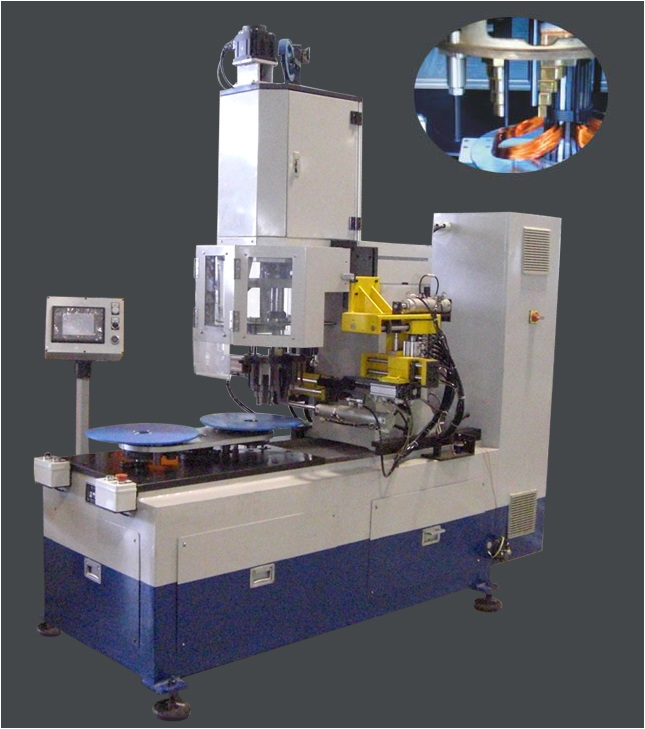

Automatic AC motor stator winding machine WIND-100-VW

Coil maker
Save copper wire
Product description: Produce coil for stator and insert to the transfer tool, automatic Coil winding machines for copper or aluminum wires, Aplicar a todo tipo de motores micro tal como un motor, bomba de motor, aire aco
Inquiry

PRODUCT INTRODUCTION

Automatic stator coil winding machine WIND-100-VW Advantages:

2 stations, 1winding head, fully servo system for coils winding, save copper wire,better winding quality

Voice from User:

WIND-100-VW automatic stator coil winding have a better efficiency, meanwhile, when inserting coils and wedges to stator, the pass rate is high, and sometimes coils produced by the simple CNC coil making machine WIND-160-HW might get damage in the coil winding and wedge insertion process.

Specification:

Wire diameter:0.1~1.2mm
Min stator ID:40mm
Max stator OD:175mm
Core length:40-130mm
Power:380V, 50/60KW
Weight: about 1100kgs

Dimensions: 1900 (L)x850 (W)x3200(H)mm

Video:

https://vimeo.com/165529480

http://youtu.be/EvCm9JNFWOE

Winding demo with thin wire 0.1mm

https://vimeo.com/165521811
