> Universal motor armature

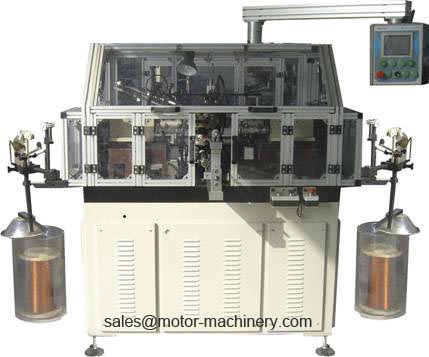

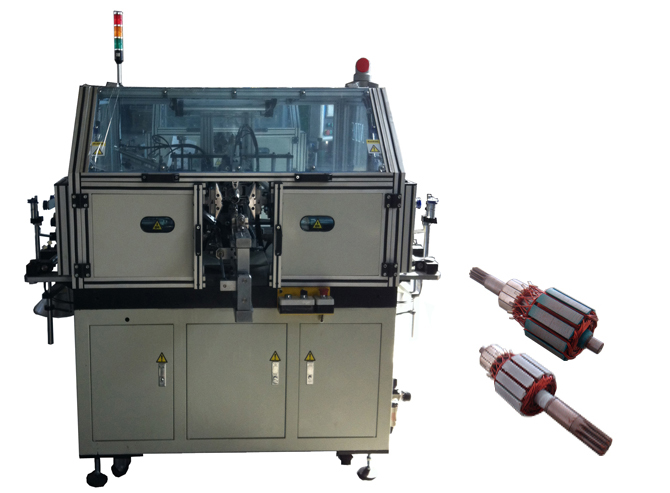

Armature flyer winding Hot sale type

Product description: намотки станок Wind the wire of armature for micro motor such as series motor, power tools,mixer,blender,car motor etc. With Japanese brand PLC control system and servo system
Inquiry

PRODUCT INTRODUCTION

Main Parameter:

Wire diameter range:  0.16~1.2 mm
Armature diameter:  20~85 mm
Stack length:      10~70 mm
Shaft diameter:    3~15 mm
Shaft length:       less than 250mm
Armature Slot:  even slot
Turn number:  0~9999
Commutator diameter:   8~40 mm
Winding speed:   0~2500 rpm
Winding motor power:  1.5KWX2
Angle detecting speed:   0~3000 rpm
Angle detecting motor power:  0.75KWX1

Air supply pressure:   4~6 Kg/cm2
The machine total power:  4.0 KW
Voltage:  three phase AC  380V   50/60 Hz
Weight:  1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000

Working video: https://vimeo.com/123798436

You may also interest in Another semi-auto type for reparing types of armature available
