> AC motor stator machinery
Cuff creasing cutting machine WIND-IF series
- Product description: Insulation paper forming cuffing creasing and cutting for brushless permanent magnet motors Form and cut the insulation paper for induction motor stator, cell insulation such as mixer,grinder,power to
PRODUCT INTRODUCTION

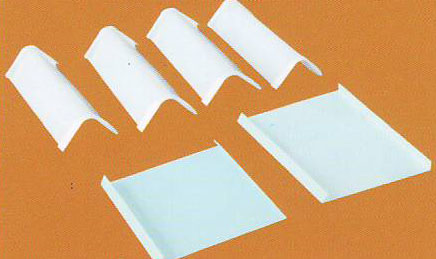

Cuff creasing cutting machine WIND-IF Series ,can produce insulation paper per customer requirements,
paper forming cuffing creasing and cutting for brushless permanent magnet motors
Nomex cuffing for the motor insulation,
Creasing, cuffing and cutting Video
https://vimeo.com/163655170 Latest
Insulation paper Maylar forming and cutting https://vimeo.com/117535258
https://vimeo.com/164493759 For details operation process
https://vimeo.com/165378548 0.15mm thickness 70mm width
http://www.dailymotion.com/video/x28iz1c_creasing-machine-for-euro-customer-in-the-year-2012_tech
Machine Data:
Feeding length 10~100mm
Cutting width <150mm
Cutting thickness < 0.35mm
Edge folded width 2.5mm~4mm
Weight: around 150KGS
Dimension: 500*900*1200mm
Contact:Emily
Email: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-17721374887
Website: http://www.motor-machinery.com; http://www.coilswinding.com
