> Motor machinery for Stator
Outrunner stator BLDC stator flyer winding machine WIND-2-TDS
- 3 Axis
- with servo motor
- Product description: Outrunner stator winding machine Magneto winding machine is designed to produce motorcycle magneto,
PRODUCT INTRODUCTION
BLDC Stator segmented winding machine muti poles winding 9 12 poles motorcycle magneto outside rotor winder, mostly applied in digital generator external rotor winding
Segment winding machine with two turnable heads
Technical Data:
Wire diameter: 0.15~1.5mm
Stator ID: 15~260mm
Stator stack height:7~60mm
Turns no.:0~99999
Winding speed:0~1500rpm
Mode: Step/Auto
Airsource:5~7KG/cm2
Machine power: 2.5KW
1phase AC 220V 50~60Hz
Weight: about 600KGS
Dimension:1150*2350*1500mm
Configuration:

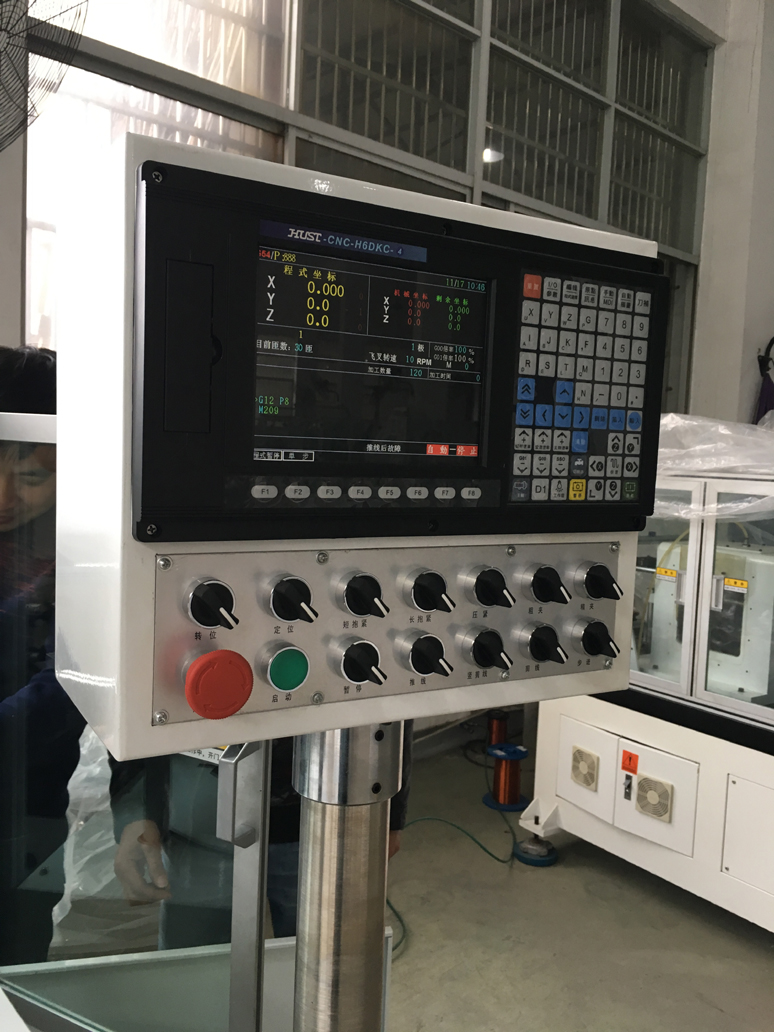

Taiwan Hust H6D CNC system
Taiwan Delta servo system
Airtac cylinder
Automatic winding machine Video:
Contact:Shanghai Wind Automation Equipment Co.,Ltd
Email: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.coilswinding.com
