> AC motor stator machinery

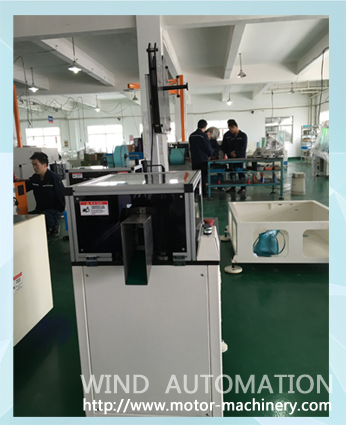

Isolation forming machine WIND-200-WF Slot closure cuffing creasing and cutting
- Product description: Form and cut the insulation paper wedge Nomex fiber slot stick paper Slot closure cuffing creasing and cutting for induction motor stator ,cell insulation such as pump,ceiling fan, compressor,hood mot
PRODUCT INTRODUCTION
Isolation paper Wedge Forming cuffing and Cutting Machine WIND-200-WF produce fiber slot sticks which can hold in place armature winding firmly.
Parameter:
Paper feeding length:10~200mm
Paper cutting thickness:0.2-0.5mm
Paper cutting speed:120pcs/min
Power supply: 220V/ 50/60Hz
Weight:150Kg
Dimension:500*90*1200mm
This machine is equipped with a double row mould for paper cutting,
stepper motor for controlling paper feeding action,
human machine interface for setting feeding length and a heating device which is used before forming.
Cutting speed and heating temperature are adjustable.
Video:
Form and cut the insulation paper wedge
Photo:
Contact:Emily
Email: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.coilswinding.com
