Adding weight Automatic dynamic armature balancing

Adding weight automatic dynamatic armature balancing machine Advantage:

1.No need to mark in armature (such as reflective sheet, black mark and so on)

2. Imbalance point positioning automatically

3. Low operation skill requirement to staff

4. Reduce the complexity of the machine operation

Parameter:

1. Balancing rotation speed: 900~5000r/min (resolution: 10 turns)

2. Imbalancing value:0.3g.mm/kg

3. Weight of workpiece: 0.1-1.6kg

4. OD of workpiece: ≤∮200mm

5. Shaft O.D of workpiece: ∮2.17-∮25mm

6. Lamination of workpiece: 10—200mm

7. Driving mode: belt

Operation process:

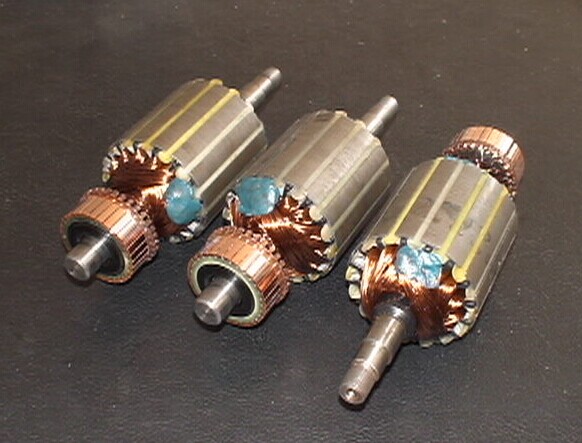

Machine measure armature’s imbalance automatically,display the imbalance of each side on touch screen,

Stop at adding weight point (left) automatically, finish adding manually, change to the next adding weight point (right),

finish adding manually, test again, and complete balancing adjustment.

Take out well-balanced armature,

Video:

https://vimeo.com/128953082

Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
