  • Armature testing panel WIND-AT-100

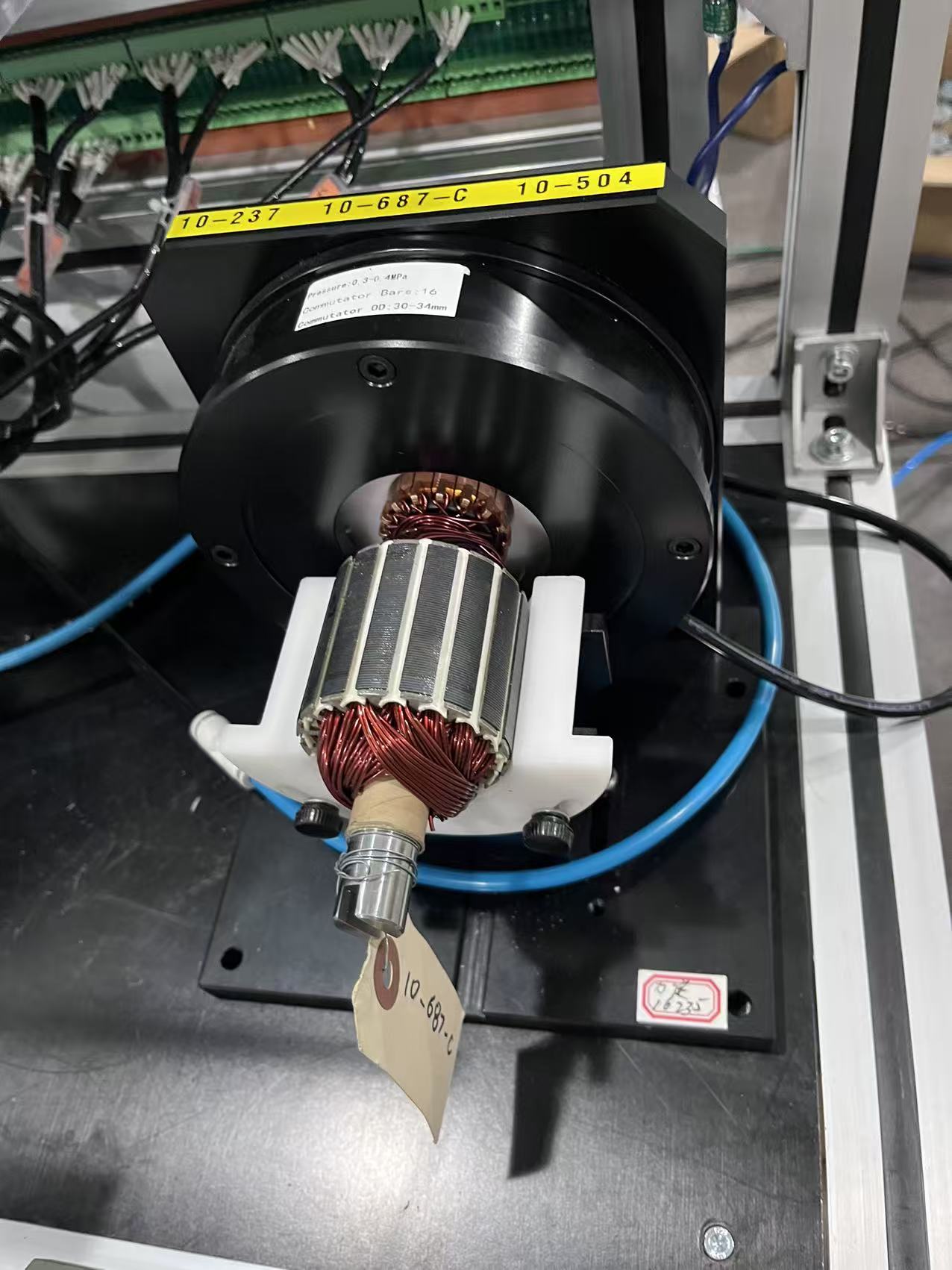

Armature testing panel WIND-AT-100

  • Product description: This armature testing panel with LCD and double working station, controlled by IPC, could programming testing the bar-bar resistance, welding resistance, dielectric strength(Hi-pot), insulation resist
  • Inquiry

PRODUCT INTRODUCTION

Armature testing panel WIND-AT-100 with LCD and double working station, controlled by IPC,

could programming testing the bar-bar resistance, welding resistance, dielectric strength(Hi-pot), insulation resistance and turn-turn insulation.

The loading and testing mode could be shifted by sliding the safety cover.

The testing panel starts testing once the safety cover being slid upon the working station


Testing item and accuracy:

1. Dielectric strength(Hi-Power): between armature and coil

Testing voltage: 0 to 3000VAC(adjustable)

Current leakage: 0 to 10mA(adjustable)

Testing time:0 to 60S(adjustable)

Testing accuracy: 1%

2. Insulation resistance: between armature and coil

Testing voltage:500VDC

Testing range:10MΩ-100MΩ

Testing accuracy:±1%

3. Turn-turn insulation:between coil and coil

Surge/Pulse voltage:0 to 3000VP(adjustable)

Pulse energy: 0.15J

Alarm sensitivity:adjustable according to customer’s requirement

Wave curve store automatically, curve comparison

4. Cold resistance:between commutator segment and segment

Testing range:0 to 0.5 to 5Ω(resolution ratio 0.1 uΩ

Testing range is selectable according to customer’s requirement

Testing accuracy:±1%

Temperature compensation:20℃

5. Welding resistance: between commutator segment and coil welding point

Testing range:0 to 10mΩ

Resolution ration: 1uΩ

HS Code:9030390000



Contact: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com





PREVIOUS:Armature Commutator hot staking with DC power supply WIND-DC-CW002 NEXT:Armature trackling vanish mc
