How to set Armature winder

Motor Manufacturer Clinet Question:

Hi Emily I’m fine but tired These last few days I've been very busy,

I have to double production and it's difficult not to work

When we bought the machines,L sent you the drawings

I need to change hook !

Wind Automation Answer:

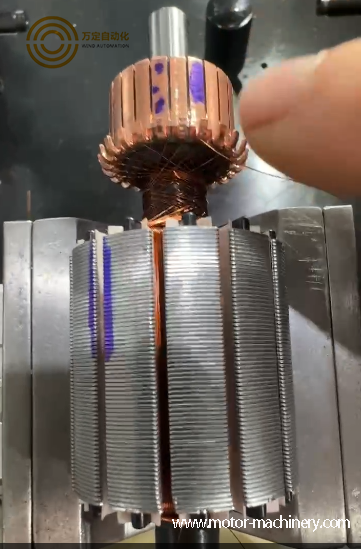

Change hook From which one to where,could you point out on this wound armature?

Motor Manufacturer Clinet:

I'll see another diagram with L

Wind Automation:

Press Change paramete on touch screen, input password

and take a photo then, we show you how to copy a new parameter

Change 1 to 2,press Copy

Back to Page1 and set Turns NO. PER Armature,and try to winding

Motor Manufacturer Clinet: 2 hook for left

Wind Automation:You mean need to move 2 hook to left?

Motor Manufacturer Clinet: Yes

Wind Automation:

Please set the First Indexing 105,Second Indexing255, Third Indexing120, Fourth Indexing 270

Motor Manufacturer Clinet: I put this tape on because the wire is going behind the insulation

Wind Automation:

The paper insertion method is hand or paper insertion machine?

Motor Manufacturer Clinet:

Machine

Wind Automation:

As this winder worked for types of armature with different stack height, the tooling should be applied for all of them, so you may need to adjust the indexing device forward

Loose screw and rotate this , then you can move the indexing device forward/backward

To achieve the winding to make sure the front and back of the wound armature don’t be contact

Motor Manufacturer Clinet:

I wish there was one for each size 30-40-45 armature stack height,

How much does it cost to make two new ones?

Wind Automation:

You may make a scale to mark on the indexing mechanism

Or mark with

And Wind Automation will send the budget for the parts

Motor Manufacturer Clinet:

On the other winding machine this device is more closed

Wind Automation:
Yes, the device of Winder WIND-STR for types of armature so it is bigger not closed

Motor Manufacturer One more question,
The left piece no split two coils one slot and right two coils two slot
This is only correct because we prefer to wind the second coil at the end.

\

Wind Automation:

The right armature is the correct example?

Motor Manufacturer Clinet A :

This program for good to left armature but I would like split I don’t know you understand

Wind Automation:

Understand , please wait for a moment and try to set indexing angle of winder as

the First Indexing180,Second Indexing180, Third Indexing195, Fourth Indexing195

Motor Manufacturer Clinet A :

I will test this

This is okay ,

Thanks a lot!
