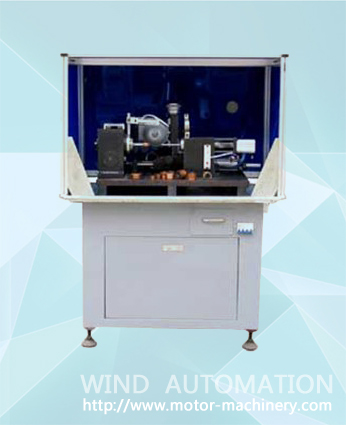

Commutator undercutting machine WIND-8066-FD

Product description: The slotting undercutting machine can handle commutator type with slotted type and hook type commutator with OD range from 5mm to 130mm, For slotted type commutator with riser, a cusom made robot
Inquiry

PRODUCT INTRODUCTION

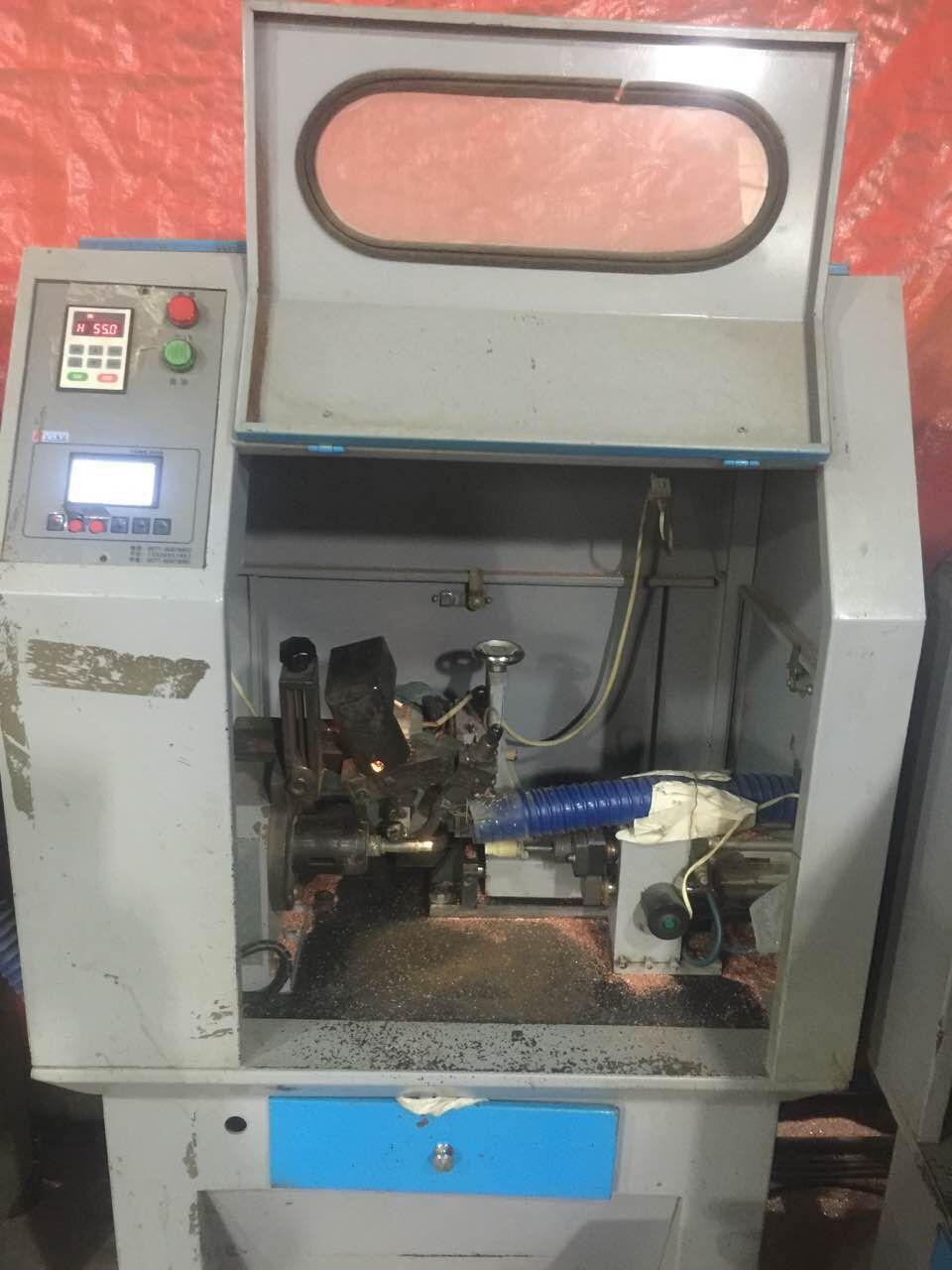

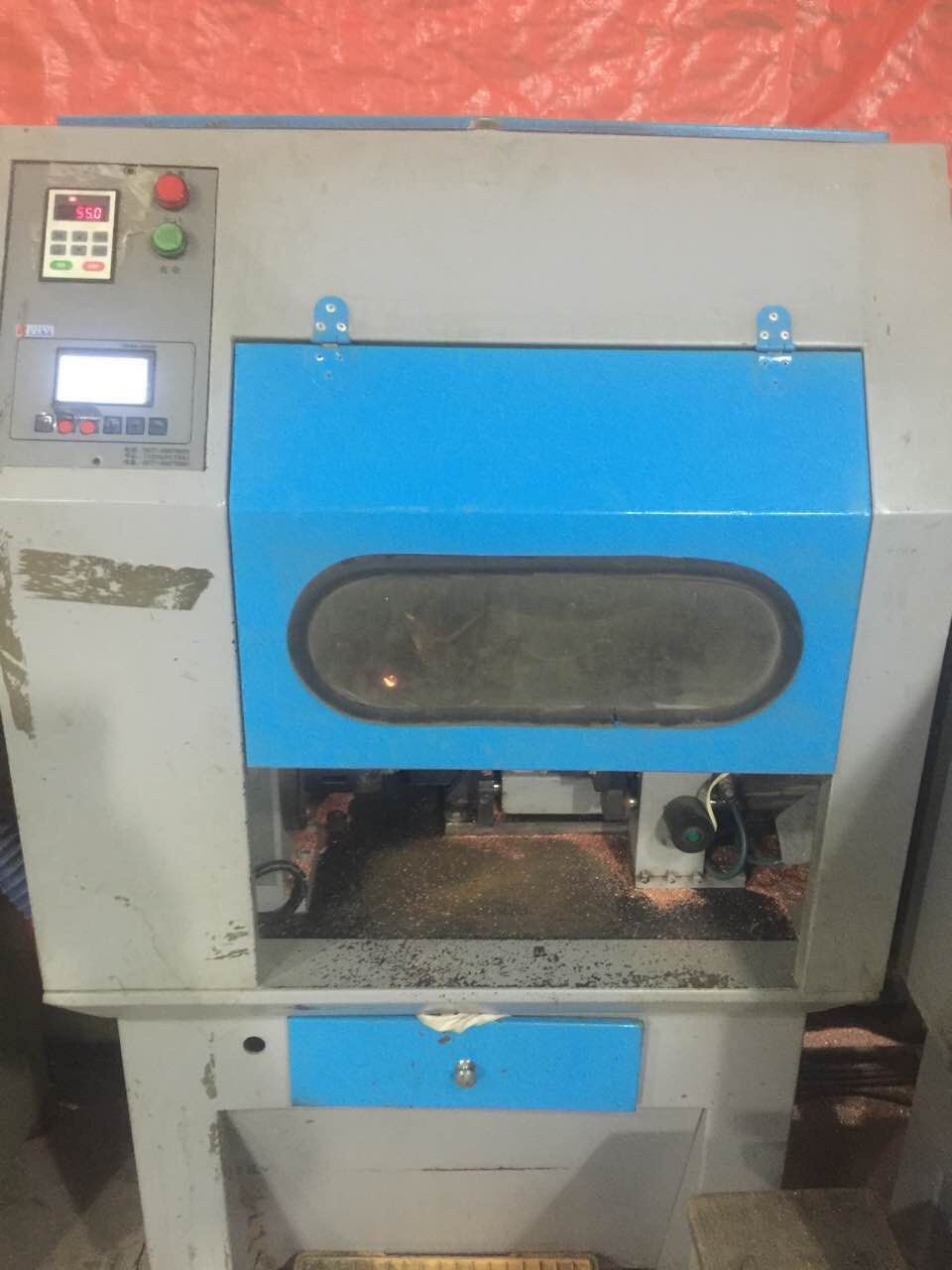

Slot undercutting machine WIND-8066-FD (Automatic loading and unloading commutator) Parameters:

Voltage: three phase 380 V,50Hz

Air source: 0.4--0.75MPa

Motor power: 1.1kw

Commutator OD range from 5mm to 130mm,

Speed: 2800RPM

Capability in one shift: 1200 pcs

Slot range: 2--99 slot

Commutator slotting machine Video

The commutator slotting machine can handle commutator type with slotted type and hook type commutator with OD range from 5mm to 130mm,

For slotted type commutator with riser,

a cusom made robot hand is recommened for safety, and it's time cost to change robot hand when you shift to other types,and the commutators might get damage when unloading,

For slotted type commutator without riser, automated system is suitable,

For hook type commutator, slotting process is before bend the hook end,

Commutator Slotting undercutting WIND-8066-FD

https://youtu.be/pi2wuaWG6fA

https://vimeo.com/171677032

Small OD commutator Slotting machine with loading unloading device

https://youtu.be/-Lex86n_SOI

https://youtu.be/I3-8bGNG2gY

Commutator slotting in automatic line in commutator manufacturer plant

https://youtu.be/f2_Voy4qaxQ
