Brushless Motor Stator Needle Winding Machine

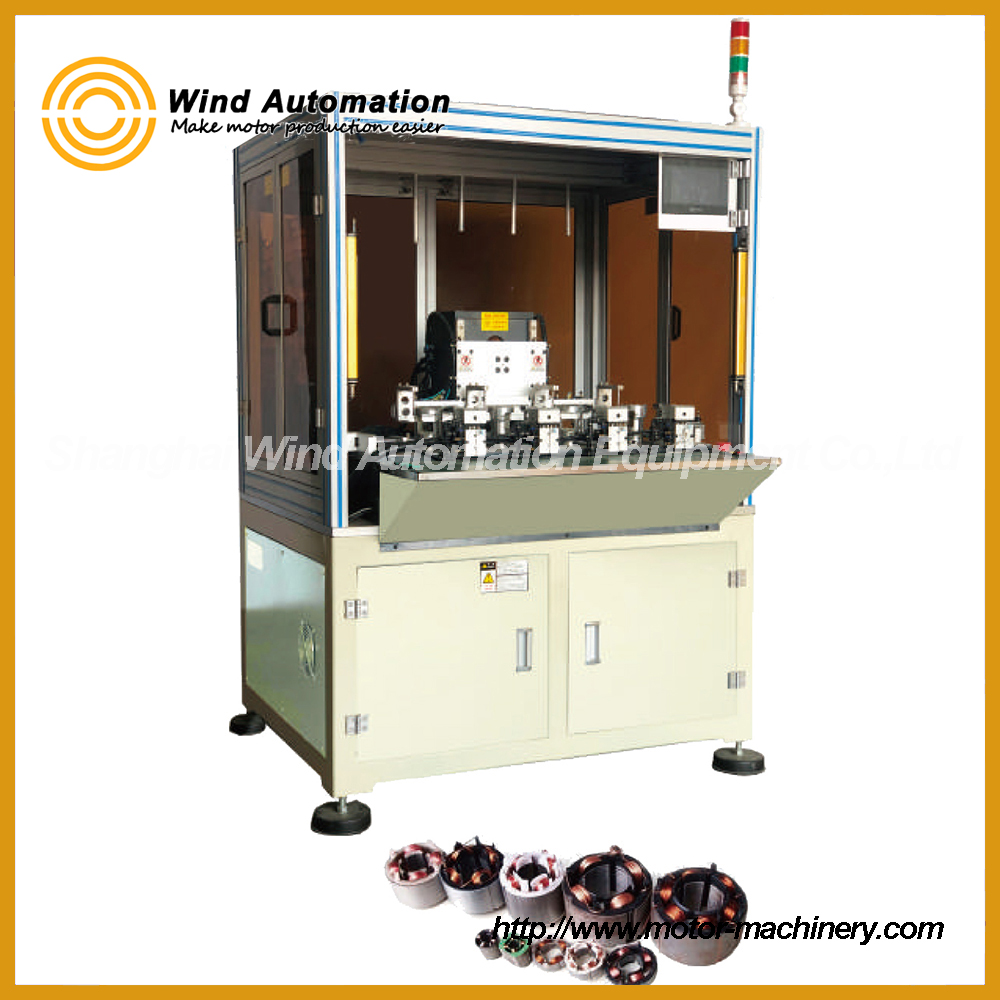

Two/Four station BLDC Stator winding machine WIND-BLDC-2/4 wind the brushless DC motor stator

with four station to improve efficiency!

Competitive Advantages:

All the toolings are very easy to be changed within 1 minutes expect the power tool BLDC motor stator which have terminal wires on both sides, not one side.

Parameter:

Wire diameter:0.08 to 1.2mm (suitable for thin wire and small stator)

Stator ID: 12 to 130 mm (handled ID 14 to 120mm)

Stack height: 5 to 70mm

Winding motor: Servo motor Panasonic 3000W    1pc

Arraying motor: Servo motor Panasonic 2000W   2pcs

Indexing motor; Servo motor Panasonic 750W    2pcs

Speed: 300 to 600 RPM

Air pressure:5~7kg/square centi-meter

Power:AC380V 50/60Hz

Weight: about 480kgs

Dimension: 1800(L)x850(W)x1600(H)mm

BLDC Motor Stator Winding Machine Video:

https://vimeo.com/129893510

This needle winding machine WIND-BLDC series

also can to be used in our laboratory for production of prototypes of stators.

Tooling change can be done in 10 minutes,

Please inform your stator lamination drawing/ winding diagram

with an internal diameter  an outer diameter mm and a height of mm.

Wire diameter mm turns per tooth
