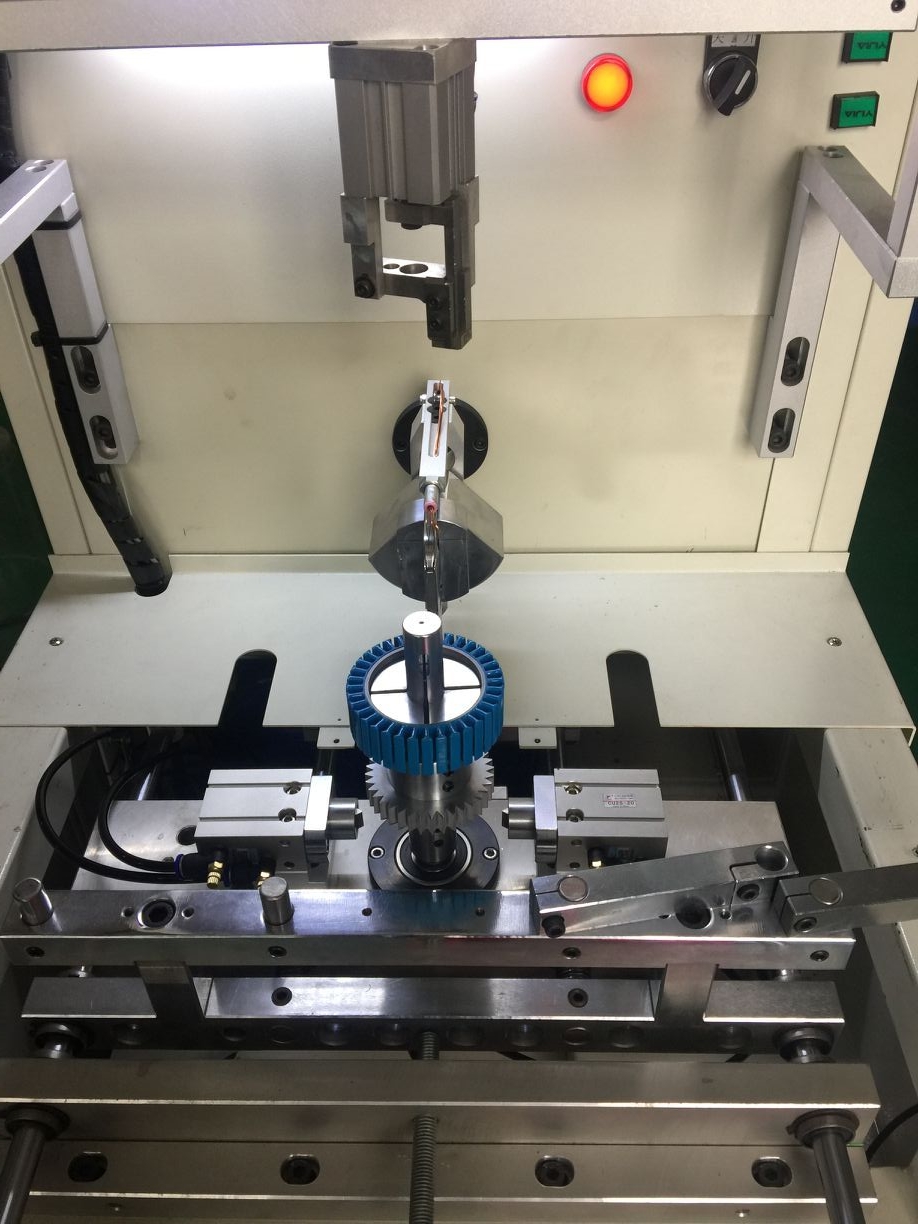

Aircraft helicopter ship models muti wires stator winder

Brushless stator coil winding machine 12pole 36 pole Model aircraft mutiwires winder

Application: Model aircraft stator muti wires winding

Brushless stator winding machine advantage:

1.Can record and install types of winding data for types stators

2. Can change the winding direction automatically,

3. The windings are in order, neat and tidy

4. Automatic winding, automatic indexing, automatic displacement coils, clamping and cutting wire,

5. Winding Nozzle material use Tungsten steel to avoid enamel copper wire damage

6. Chaning fixture and tooling is easy and fast

Winding machine Parameter:

Power supply: 220V, 50HZ

Winding Motor: AC motor

Arraying:Stepping motor

Indexing:Stepping motor

Inverter: Delta electronics

Wire diameter:0.10mm~0.70mm

Stator OD:20~160mm

Stator height: 5~50mm

Displacement arraying width: 60mm

Spindle: 0~1500rpm (according to wire diameter)

Slots: 2~36slots

Stator winder toolings

Winding machine video:

Model aircraft agricultural aircraft jet flight Muti wires Outrunner stator winding machine
